KCD Multifunction electric winch wire rope hoist 220 volt electric construction winch

FOB Reference Price:Get Latest Price
$80.00 - $480.00 / Piece | 1.0 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 15 16 - 25 >25
Est. Time(days) 12 20 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
VOHOBOO
Model Number:
KCD
Power Source:
Electric
Application:
Cranes, Lifting Goods
Capacity:
5~650KN, 200KG-2T
Brand:
VOHOBOO
Control Method:
Pendent Control or Remote Control
Type:
KCD electric winch
Power supply:
220V/380V 50HZ
Color:
Customised
Lifting height:
30~100m
Voltage:
220V or customized
keywords:
2 ton electric winch price
Product Certification certification
CE Certified.
Valid from 2018-07-18 until 2023-07-17
Supply Ability
Supply Ability:
5000.0 Set/Sets per Month 2 ton electric winch price
Packaging & Delivery
Packaging Details
2 ton electric winch price ,
Electric parts and electric winch are packed by strong plywood crate.
Port
China port

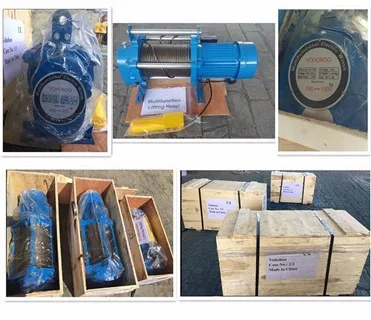

Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 15 16 - 25 >25
Est. Time(days) 12 20 To be negotiated
Product Description

KCD Multifunction electric winch wire rope hoist 220 volt electric construction winch

KCD Winch applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on, which is the ideal equipment to improve working efficiency and working conditions.

Model
Usage
Power(kw)
Load Capacity(kg)
Lifting Speed(m/min)
Lifting Height(m)
Weight(kg)
300-600
Single-hook
0.6
300
14/7
30-60
32
Double-hook
600
400-800
Single-hook
1.8
400
12/6
30-60
38
Double-hook
800
500-1000
Single-hook
1.5
500
12/6, 16/8
30-100
50
Double-hook
1000
750-1500
Single-hook
2
750
16/8
30-100
65
Double-hook
1500
1000-2000
Single-hook
3
1000
16/8
30-100
120
Double-hook
2000

Main Features

1) No escape of wire rope from the drum by means of P.T.screw device.


2) The shaft direct driving drum provides rope replacement and alteration of rotation with easy.


3) Designed for both static and dynamic loading.Brake will auto-matically apply in the event of power cut.Large friction surface area. No adjustments or serving requirement.


4) Provides strength, durability an non-worry of breakage of structure.


5) Special Motor insulated B,with the features of big start to rque,small inertia,lower temperature rise,it can work frequently for a long time.


6) The heat treated gear with bearings features durable perform and anti-wear.


7) It is made of super armor plate, used for suspender, lifter and girder.

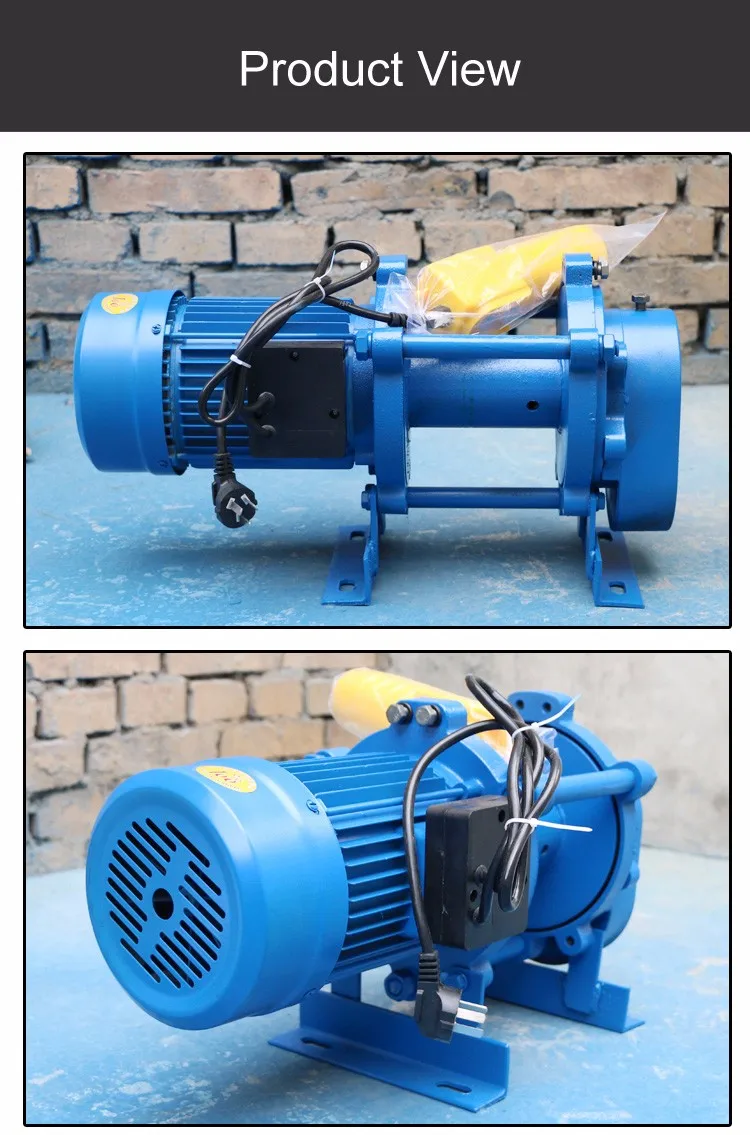

Detailed Images

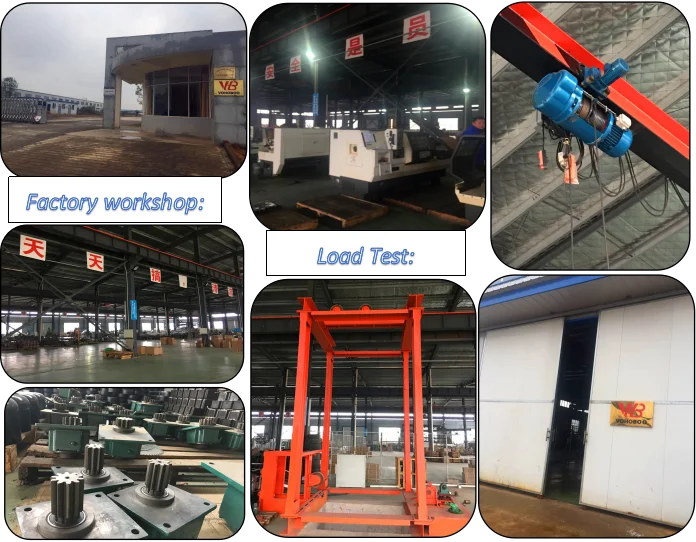

Our Company

Our information:

Wuhan Vohoboo Import & Export Trade Co.,Ltd is a modern high technology enterprise integrated R&D, manufacture and sales since the year of 2011.

Our Products : Vohoboo specialized in the development and production of European hoist , electric chain hoist, (CD/MD...) electric hoist, electric winch, DN hoist lifting motor, YSE crane traveling motor, crane wheel, crane hook,CK car parking motor and so on, are widely used in electric hoist, gantry crane, overhead crane, car parking system and other lifting equipment.

Our Service

Pre-Sales Service

* Professional: Reliable and effective drive solutions for more than 110 countries and regions in the world.

* Reliable quality: Approved by IS09001, European CE certificate.

* Technical support: Lifespan.

* Powerful R&D experience:

We have an active R&D team with different patents and we have  enegetic sales teams.

After-Sales Service

* Guarantee: 12 months.

*Three layers wodden case for package.

* Engineers available to service machinery overseas if it has quality problem in one year.

* 24 hours online service.

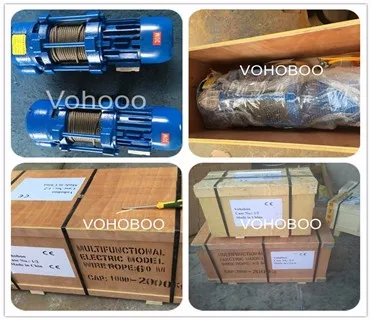

Packing & Delivery
Packaging
Size
65CM (L) * 26CM (W) * 42CM (D)
Model
KCD 400-800
G.Weight
50 KG



Packaging Details
The normal package is fumigated three layers wooden box(Size: L*W*H) and we will cover some anti-shock waterproof foam to protect it, or we will pack it according to customers special request.
(please be noted that the trolley and hoist will be packed separatly if you need trolley type)
Packaging
Size
83CM (L) * 34CM (W) * 46CM (D)
Model
KCD 750-1500
G.Weight
92 KG

Packaging Details
The normal package is fumigated three layers wooden box(Size: L*W*H) and we will cover some anti-shock waterproof foam to protect it, or we will pack it according to customers special request.
(please be noted that the trolley and hoist will be packed separatly if you need trolley type)
FAQ

To offer you more accurate quotation, please provide below answers for us in advance:


1).Which kinds of KCD winch do you need?

2).FOB or CIF price?(If CIF price,tell us your destination port)

3).Quantity?(set)

4).Lifting capacity?(ton)

5).Lifting height?(m)

6).Working voltage?(V,HZ,Phase)

7).Lifiting Speed Single or Double?

8).How many hours the hoist works one day?

9).Any other requirement do you need?
