0.5 1 2 3 ton wall mounted jib crane, 180 degree rotating jib crane

FOB Reference Price:Get Latest Price
$399.00 - $1,999.00 / Piece | 1 Piece/Pieces (Min. Order)
Max. Lifting Load:
1-5TON
Model Number:
JIB
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 5 6 - 10 >10
Est. Time(days) 15 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
1~20m
Warranty:
1 YEAR
Feature:
Jib Crane
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Warehouse/workshop/factory
Rated Loading Capacity:
0.25-20 Ton
Rated Lifting Moment:
50KN
Span:
7.5-22.5
Place of Origin:
Hubei, China
Brand Name:
VOHOBOO
Certification:
CE ISO
After-sales Service Provided:
Online support
Product Name:
JIB crane
Crane feature:
Easy Operated JIB Crane
Control method:
wireless Remote Controller or handle
Type:
Slewing Arm Crane
Power Source:
3 Phase 380V 50hz or be customized
Lifting speed:
by hoist speed or can be customized
OEM/ODM:
available
Delivery:
by sea
Color:
Yellow .Red . Orange or can be customized
Lifting mechanism:
Elctrical Hoist
Supply Ability
Supply Ability:
1000 Set/Sets per Month Manual JIB crane for factory
Packaging & Delivery
Packaging Details
Manual JIB crane for factory ,

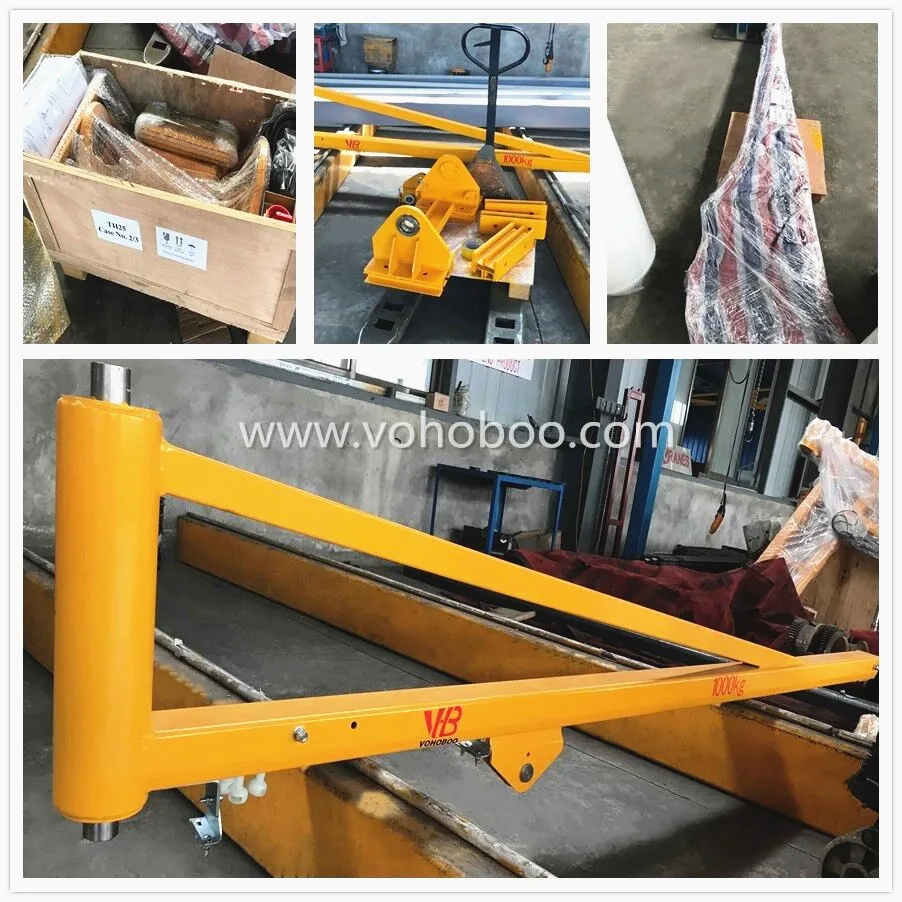

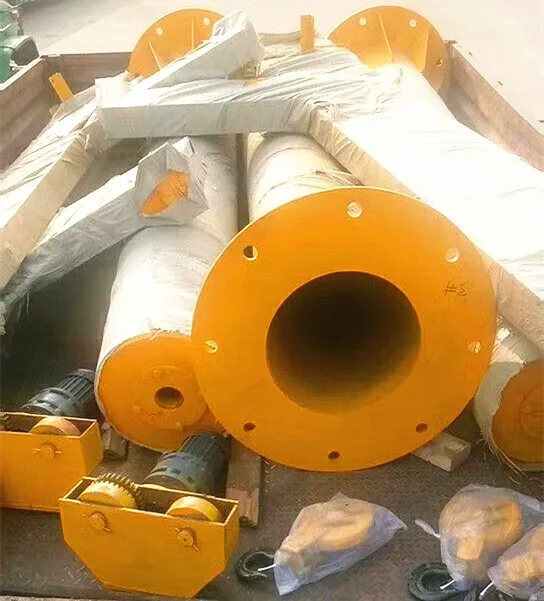

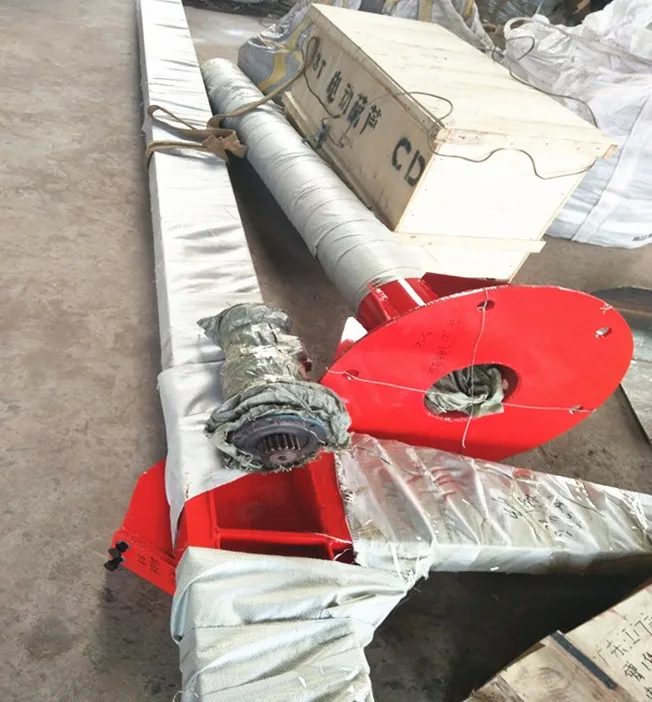

The normal package for crane is waterproof cloth, wooden box for hoist and other accessories.
(If export to european countries,the wooden box will be fumigated.)
Port
China port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 5 6 - 10 >10
Est. Time(days) 15 20 To be negotiated
Product Description

Factory price 1 ton 2 ton 5 ton mobile jib crane with wireless remote control

1.This machine suitable to work in the dock, warehouse, workshop etc Fixed working conditions, it can work within the 360 degrees to lift, move and materials handling.


2. This type machine is composed by the vertical shaft, revolivingarm, rotating shaft, hoist etc. The bottom of the vertical shaft is fixed on the concrete base. Horizontally Rotation of the revolivingarm: Manual, depend on the operator use the human force to push the impending working or self prepared rope etc device. The hoist travel with the right and left straight line on the H beam, use the hoist to lift the heavy materials. This type machine with advantages of the Simple structure, Operate convenience, Turning agile, wide working conditions.


3.Under the cantilever, it equipped with rack, hoist running dolly output gear and rack driven of occlusion, this could ensure the stability of the electric hoist. The hoist make shuttle running along the way of I-shaped beam, slewing of cantilever is finished by the motor to drive the reducer device. The cantilever is made of hollow steel structure, it is has a light weight, wide span, large lifting capacity, it is also more economic and durable. The jib crane which adopt special engineer plastic wheels with rotary bear could reduce the abrasion, running more smooth . It could install in any position with ranges of rotation 180°, 270°, 345°, 360°.

Lift capacity (T)
1, 2, 3, 5
Arm length (M)
<10


Mechanism traveling
speed (m/min)
by hoist
45, 60

motor
type
ZDY1 21-4
ZDR12-4
power(kw)
2*0.8
2*1.5
speed(r/min)
1380
1380


Electric chain hoist or wire rope hoist
model
CD1/MD1/HHBB/HH/HH-B
lift height(m)
3-25
traversing speed(m/min)
20 or can be customized
lifting speed(m/min)
8(7); 8/0.8(7/0.7)
Workclassfication
A3-A5
Power supply
380V/50HZ or on request

Main Features:

> Loading capacity: 0.5~20ton ;
> Lifting height:3~10m ;
> Jib length:2~10m ;
> Slewing degree:0~360° ;
> Power supply:220~440V,50/60HZ,three phase or customized design .

Detailed Images
Our Company

Company information:

Wuhan Vohoboo Import & Export Trade Co., Ltd is a modern high technology enterprise integrated R&D, manufacture and sales since the year of 2011.


After years of development, we have introduced a batch of mechanical processing equipment both at home and abroad on the basis of the original sophisticated processing equipment. Lingying products are deeply loved by customers because of their excellent technology, reliable quality, light weight and durability. Our company's product areas include cranes, chain hoists, manual hoists, electric hoists, electric chain hoists etc.


Our company lifting tools are mainly used in wind power, manufacturing, machinery, equipment, ships, bridges, equipment installation, petroleum, metallurgy, petrochemical, chemical, rescue, aircraft manufacturing, mining and other industries.Our products are exported to Europe, America, Asia, Oceania, East Asia, Southeast Asia, South Asia, Central Asia and other international markets as well as China's northeast, north, south, northwest and other domestic markets.

Our Service

Pre-Sales Service

* Professional: Reliable and effective drive solutions for more than 110 countries and regions in the world.

* Reliable quality: Approved by IS09001, European CE certificate.

* Technical support: Lifespan.

* Powerful R&D experience:

We have an active R&D team with different patents and we have enegetic sales teams.

After-Sales Service

* Guarantee: 12 months

* Three layers wodden case for package .

* Engineers available to service machinery overseas if it has quality problem in one year .

* 24 hours online service .

Certifications
Packing & Delivery
FAQ

Q1: What are you? Trade Company or manufacturer?

We are both manufacturer & trading company.


Q2: What's the advantage of your company?

We're experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries. An independent research team specially focusing on motors&hoists design and production. A professional service team for customers will provide feedback within 24 hours.


Q3: What's the sample & MOQ to your company?

Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.


Q4: Can I customize the product according to my own willing?

Yes,we are high quality OEM/ODM manufacturer,we can satisfy all the requests to the product.


Q5: How is the package during transportation?

3 layers package. Outside is wood craft case. In the middle covered by foam to protect the motor from shaking. Inside layer covered by thickening plastic bag for waterproof.


Q6: What should I provide when inquiry?

In order to make a very quick offer and saving your time, it's better to fill the information below. Copy and send us the information together with the inquiry.It's better to send us a drawing,sketch or show us data and then our engineer can work out a full suitable solution just for you.


1> Load capacity________ 0.5 T , 1 T, 2 T, 3 T, 5 T etc?

2> Arm length ________ 3m-7m etc?

3> Lift height ________ Distance from Hook center to ground

4> Voltage________ 380V 50Hz AC 3-phase or others?

5> Control way ________ remote control or pendent control?

6> Your nearest destination port ________? or we shall offer you best FOB price.
